Variable transformers are developed, manufactured and tested in accordance with DIN EN IEC 61558 / VDE 0570.

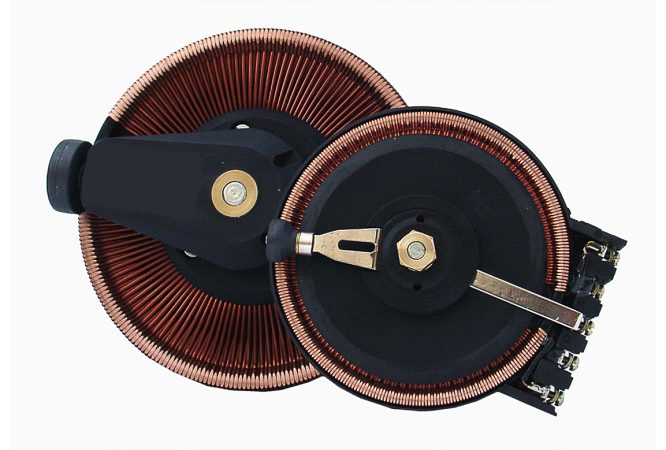

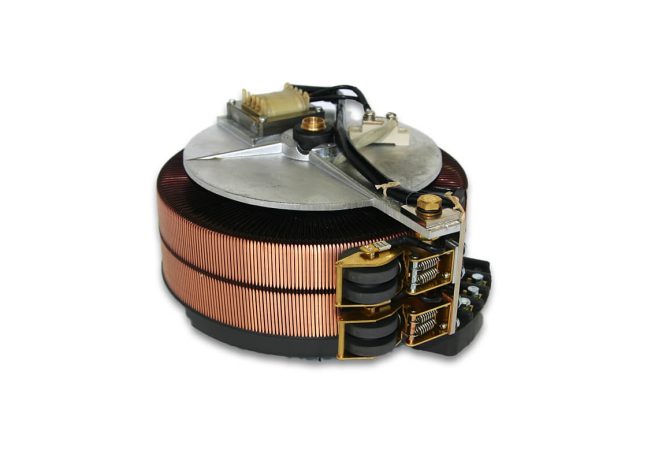

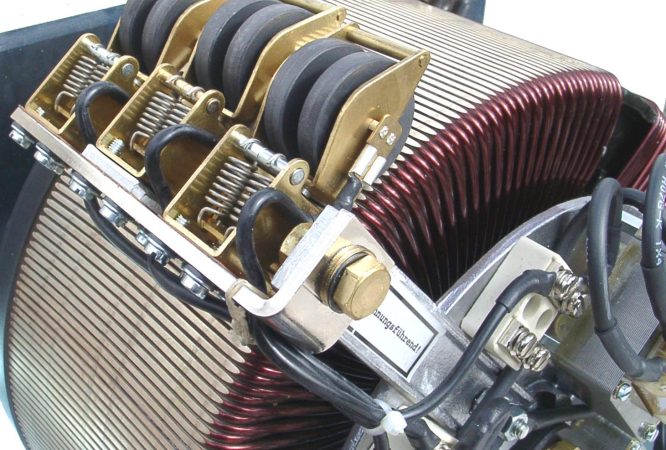

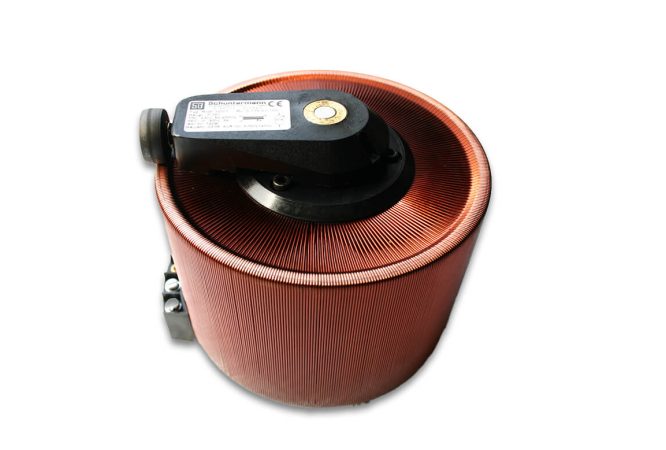

Variable transformers are used wherever alternating voltages or currents need to be adjusted under load between zero and the nominal value. They are suitable for supplying ohmic, inductive or capacitive equipment. When operated as intended, the output voltage remains sinusoidal; neither radio interference nor additional harmonics occur.
24 – 690 V
0,8 – 400 A
16,33 – 400 Hz
RV, RN und R
12 – 400 V
0,8 – 16 A
16,33 – 400 Hz
RGE

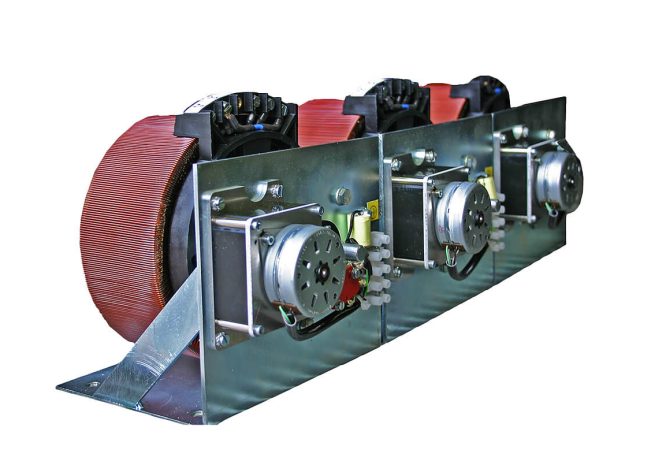

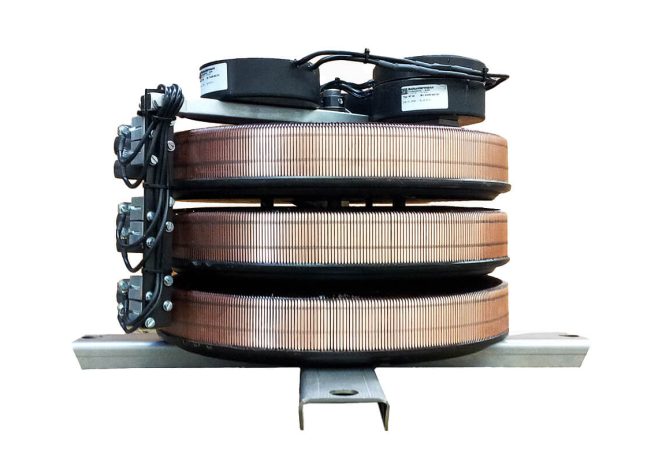

3 x 40 – 3 x 690 V
0,8 – 400 A
16,33 – 400 Hz
YRV, YRVH, YRVR, YRN und YR

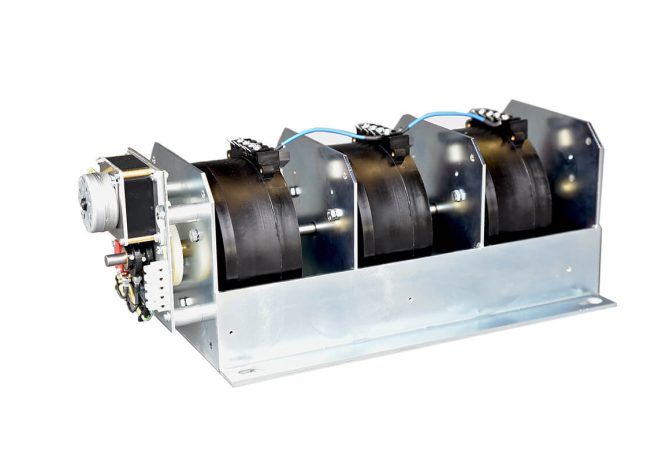

3 x 40 – 3 x 690 V
0,8 – 16 A
16,33 – 400 Hz
YRGE
Open IP00
Inrush current limiter, overcurrent relay
Experimental stations, power supply, control systems, production control, development work in laboratories
DIN EN IEC 61558-1 (general applications), DIN EN IEC 61558-2-14 (variable transformers), DIN EN IEC 61558-2-6 (safety transformers)
